POWER OBD-II Cable

Super Safe + Easy dashcam installation with VUGERA POWER OBD-II Cable

Most automobile manufacturers warn that your vehicle warranty may be void if the vehicle is modified.



If hard-wiring is of your concern, the VUGERA POWER OBD-II cable is the perfect solution for powering your dashcam.



▶ It's a Plug & Play solution (worry-free, no hard-wiring or modification required) for vehicle protection with over-current cut-off circuit

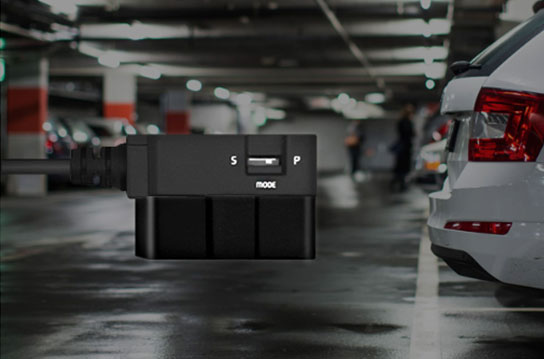

▶ Offers a manually switchable recording mode (S position: Driving only or P position: Driving and Parking mode)


▶ Built-in G-sensor for dashcam wake-up upon vehicle impact even S position (when the dashcam is switched OFF)


▶ In the P position, the dashcam enters parking mode when the engine ignition is switched OFF (transition time to parking mode differs on all vehicles. Max. 5 minutes)



▶ When no movement is detected via the G-sensor for 5 minutes, the dashcam will switch to Parking Mode (if selected) or else power the dashcam off.


▶ It is designed to automatically cut off the dashcam at 11.8V and enter sleep mode (even overrides the dashcam's lower voltage cut-off settings)



▶ OBD power input requires at engine start minimum 13.1V to power on. Once powered on, it will hold power until 11.1V in parking mode.


▶ DC 12V~15V (Max 1.8A), Cable Length: 2m

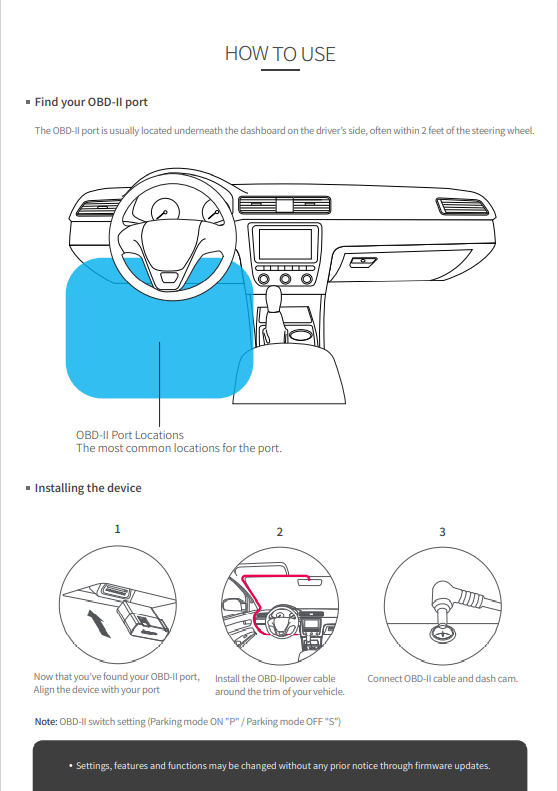

▶ Applicable on vehicles that are equipped with a universal OBD-2 port (not for use with electric vehicles)
